Marin Rift Zone 1 2026
Built For The Trail.
The Marin Rift Zone 1 is a modern full-suspension trail bike built around a lightweight Series 3 aluminium frame, 130mm of rear travel and a 140mm X-Fusion front fork.
Confidence On Climbs. Control On Descents.
Designed around Marin's MultiTrac suspension platform, the Rift Zone 1 balances efficient pedalling with active suspension performance. Its modern trail geometry, 6061 aluminium frame and wide-range 1x11 drivetrain make it ready for everything from flowing singletrack to technical terrain.
MultiTrac Suspension
130mm of rear travel is designed to keep the bike composed over rough terrain while maintaining an efficient pedalling platform.
Modern Trail Geometry
A 65.5° head angle, 430mm chainstays and low bottom bracket create a stable, controlled platform with a playful trail character.
Trail-Ready Equipment
X-Fusion suspension, Shimano CUES 1x11 shifting, hydraulic Tektro brakes and a remote dropper post come together in one complete setup.
Stay Composed When The Trail Gets Rough.
The Rift Zone 1 uses Marin's MultiTrac suspension platform with 130mm of rear travel. Combined with the X-Fusion O2 Pro R rear shock, the system is designed to provide small-bump sensitivity while remaining supportive through bigger impacts and technical sections.
140mm Of Trail Control.
The X-Fusion Slide Boost RC fork on 29-inch configurations or X-Fusion Sweep Boost RC on 27.5-inch configurations provides 140mm of travel with compression and rebound adjustment.
- X-Fusion Slide or Sweep Boost RC
- 140mm front travel
- Compression adjustment
- Rebound adjustment
- 44mm fork offset
Wide-Range Gearing For Real Trails.
The Shimano CUES 1x11 drivetrain pairs an 11–50T cassette with a 32T narrow-wide chainring. The wide cassette range gives you useful climbing gears without adding the complexity of a front derailleur.
- Shimano CUES RD-U6000 rear derailleur
- Shimano SL-U6000-11R shifter
- 11-speed Shimano CS-LG400-11 cassette
- 11–50T cassette range
- Marin Forged Alloy 32T narrow-wide chainring
- Shimano LG-500 chain
Components That Work Together.
From the hydraulic brakes to the dropper post and tubeless-compatible wheels, every major component is chosen around modern trail riding.
Series 3 Aluminium Frame
The 6061 aluminium frame combines a lightweight construction with Marin's MultiTrac suspension platform and internal cable routing.
2.35" Trail Tyres
Vee Tire Snap WCE tyres use a 2.35-inch profile, Top 40 compound and GXE Core construction for grip across changing trail surfaces.

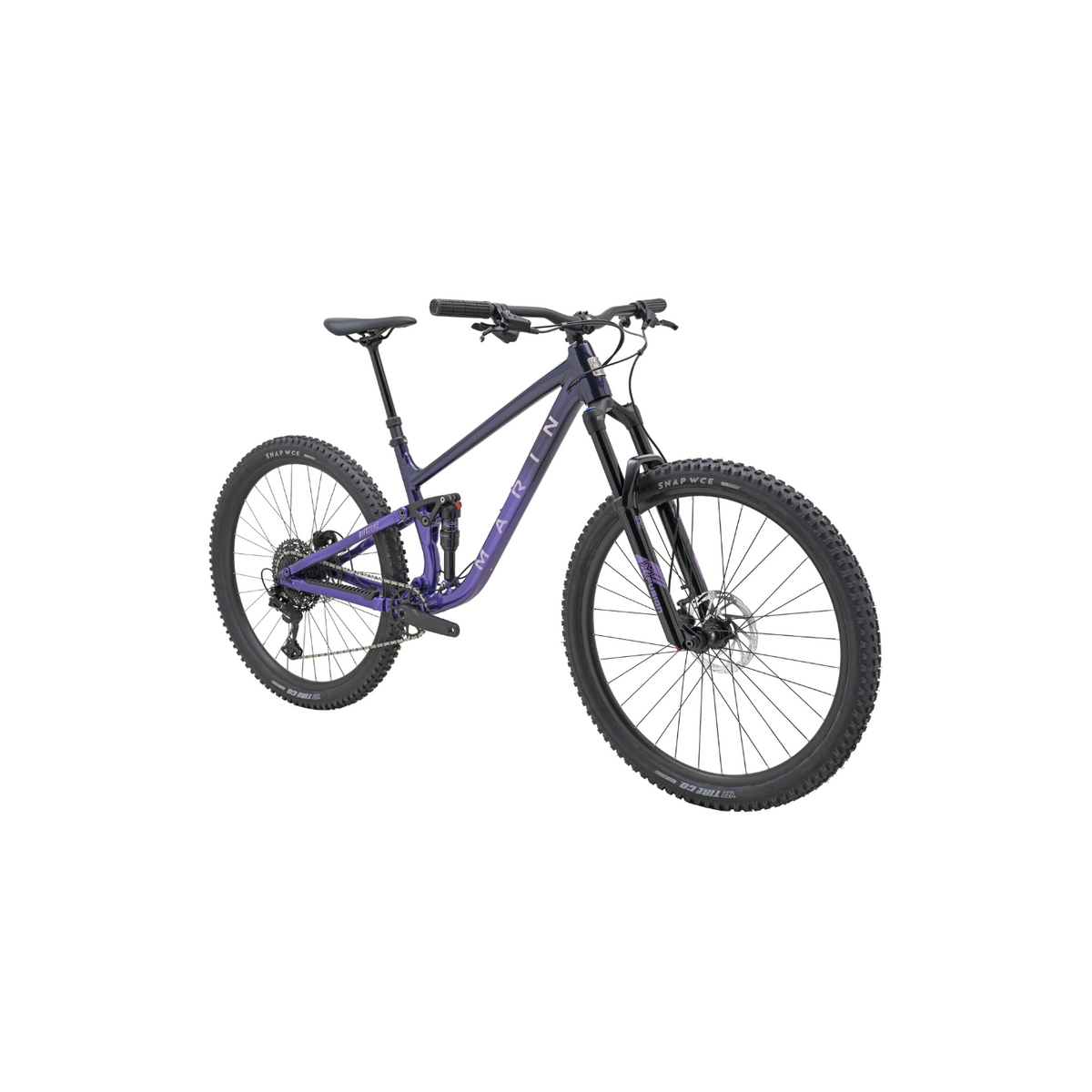

Hydraulic Disc Brakes
Tektro HD-M280 hydraulic brakes use large disc rotors for controlled braking performance across climbs, descents and technical terrain.
X-Fusion Manic Dropper
The remote-operated X-Fusion Manic dropper post lets you lower the saddle while riding, helping create more room on steeper descents.
Grip. Control. Confidence.
The Rift Zone 1 combines Marin aluminium double-wall rims with tubeless-compatible construction and Vee Tire Snap WCE 2.35-inch tyres. Tektro hydraulic disc brakes provide controlled braking at both ends.
- Marin Aluminum Double Wall rims
- 29mm internal rim width
- Tubeless-compatible rims and tyres
- Vee Tire Snap WCE 2.35" tyres
- Tektro HD-M280 hydraulic disc brakes
- 180mm brake rotors
Marin Rift Zone 1 2026 Specifications
Frequently Asked Questions
What type of bike is the Rift Zone 1?
The Rift Zone 1 is a full-suspension trail mountain bike designed around modern trail geometry, 130mm of rear travel and 140mm of front travel.
What drivetrain does it use?
The 2026 model uses a Shimano CUES 1x11 drivetrain with an 11–50T cassette and a 32T narrow-wide chainring.
Does it have a dropper post?
Yes. The Rift Zone 1 comes equipped with an X-Fusion Manic remote dropper post with 150mm travel on XS–S and 170mm on M–XL.
What wheel sizes are available?
The DoorstepDrip listing offers 27.5-inch and 29-inch wheel options, with the appropriate configuration depending on frame size.
Is the bike tubeless compatible?
Yes. The Marin aluminium double-wall rims and Vee Tire Snap WCE tyres are specified as tubeless compatible.
What suspension does it use?
The bike uses an X-Fusion Slide or Sweep Boost RC fork with 140mm travel and an X-Fusion O2 Pro R rear shock with 210 × 55mm sizing.
What sizes are available?
DoorstepDrip currently lists XS, S, M, L and XL frame sizes.
What colours are available?

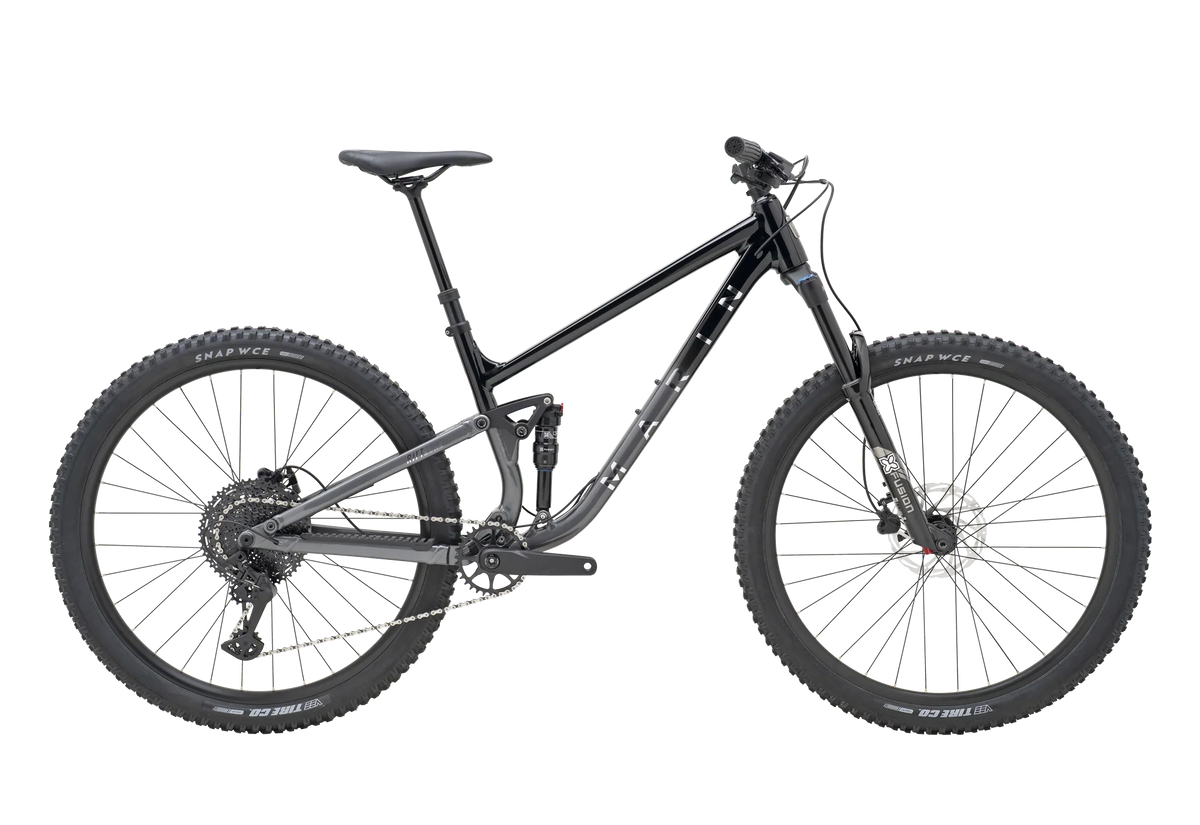

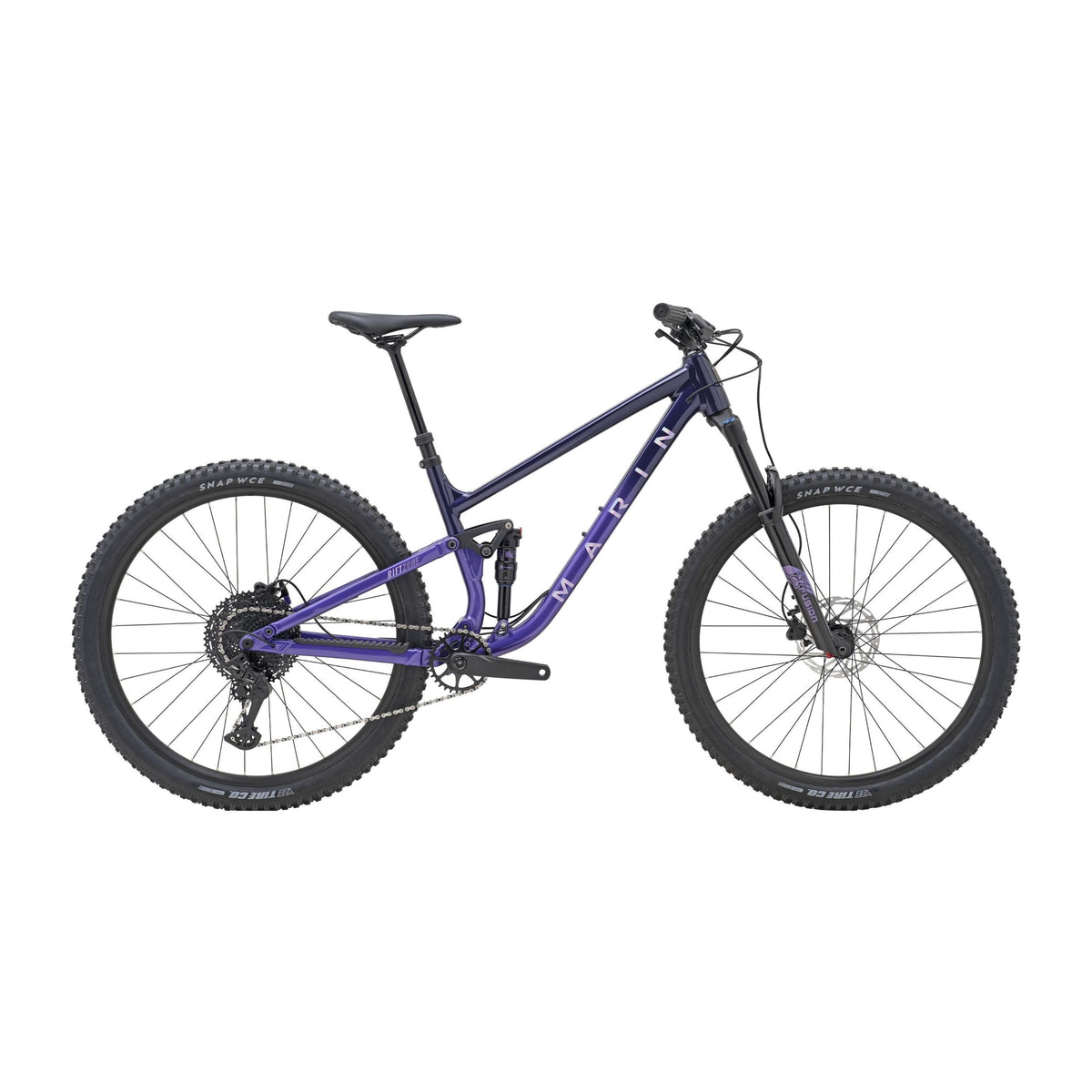

The current DoorstepDrip listing offers Black Grey and Dark Purple.
What is the current DoorstepDrip price?
The current product listing shows the Marin Rift Zone 1 2026 at £997, with pricing and availability subject to the selected variant.
Built For Whatever The Trail Throws At You.
A modern full-suspension trail bike combining MultiTrac suspension, Shimano CUES 1x11 gearing, hydraulic braking and a trail-focused aluminium frame.
